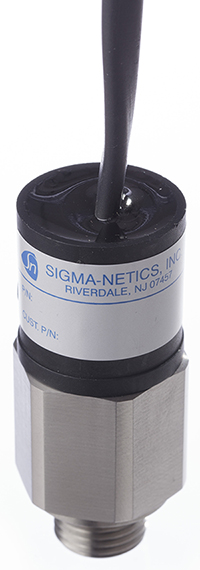

The rugged design of the 744 series of switches provides protection against corrosive elements associated with construction and agricultural equipment. Environmentally sealed, they are compatible with a wide range of media, suitable for high shock and vibration applications and operate over a wide temperature range.

	Pressure Signaling From 8 to 6000 PSIG
	Standard Connections
	- 9/16" to 18
	- 1/4" to 18 NPT (Male)
	- 1/8" to 27 NPT (Male)
	Multiple Electrical Connections
	Approximately 3oz.

Factory Set Pressure	Adjustable Pressure	Factory Set Pressure
NEMA 4	NEMA 4	NEMA 4
UL Approved	UL Approved	High Electrical Capacity
View 744-S Catalog	View 744-C Catalog	View 744-V Catalog
